Geocast 48" Non-Combustible Oak Effect Fireplace Mantel Beam (1220mm Width)
Geocast 48" Non-Combustible Oak Effect Fireplace Mantel Beam (1220mm Width)
Regular price
£247.00 GBP
Regular price
Sale price
£247.00 GBP
Taxes included.
Free UK Delivery
Premium Geocast® 48-Inch Non-Combustible Fireplace Beam

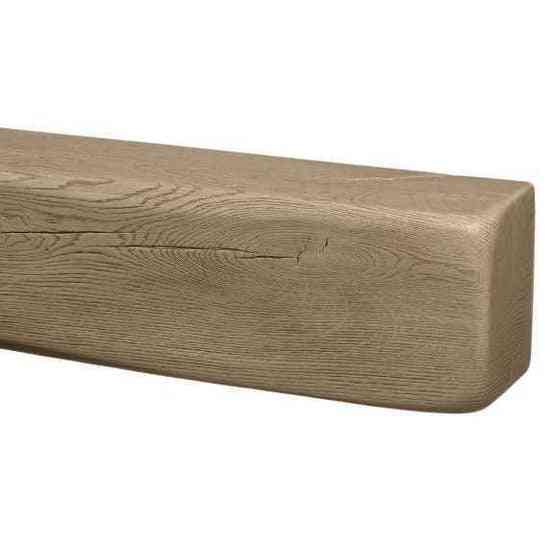

Bring the timeless charm of an antique oak beam into your home with the safety and durability of modern engineering. Our 48-Inch Geocast® Oak Effect Beams are meticulously molded from a natural, extremely durable, non-combustible mineral composite.
Because they are completely non-combustible, these lightweight beams allow for significantly smaller safety clearance distances to your wood-burning stove or flue pipe than natural timber. Each piece is individually hand-finished by skilled artisans to deliver a highly defined, authentic wood-grain aesthetic.
Product Specifications
- Width: 1220mm (48 inches)
- Height: 140mm
- Depth: 105mm
- Material: Non-combustible mineral composite
- Finishes Available: Classic Light Oak
- Load Capacity: Supports up to 20kg uniformly distributed load (maximum 6kg concentrated load).
- Installation Kit Included: Supplied with a targeted mounting template and bracket fixing kit. A complimentary pot of touch-up stain is also included for easy surface maintenance.
Optional Integrated Ambient LED Lighting
Enhance your fireplace focal point with our optional under-beam ambient lighting kit (available on this 48” model).
- Independent Operation: Control the lighting ambience independently from your stove.
- Serviceable Design: Features user-replaceable MR11 lamps and an accessible transformer system.
Critical Installation & Safety Guidelines
To ensure safe operation, comply with local building regulations, and preserve product warranties, please review these structural guidelines:

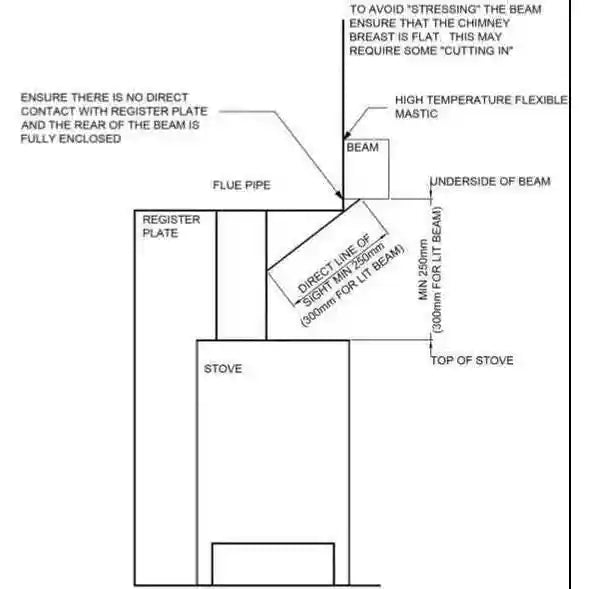

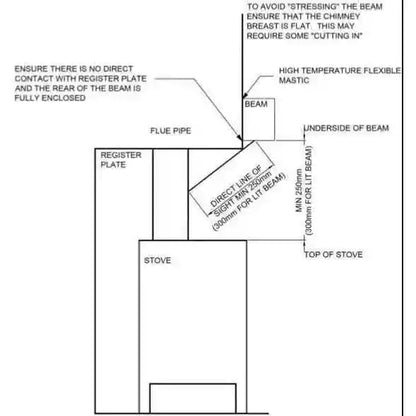

- Clearance Requirements: Minimum clearance distances apply from the heating appliance. Always consult a qualified professional before installation.
- Zero Direct Contact: Ensure there is absolutely no direct contact between the Geocast beam and any part of your stove, flue pipe, brackets, or register plate.
- Recessing & Positioning: No part of the beam may protrude below the builder’s opening. The rear of the beam must be completely enclosed.
- Structural Limits: Designed exclusively for horizontal wall mounting. This item is not suitable for use as vertical legs or "henge-style" surrounds. Do not cut or structurally alter the beam.
- Wall Substrates: If your chimney breast is bowed, the beam must either be cut-in (chased) or packers must be used behind the brackets. Do not force the beam onto the brackets, as this can induce cracking over time.
- Surface Protection: Never use self-adhesive masking tapes directly on the beam surface during installation, plastering, or painting, as this will permanently damage the hand-applied finish.
- Thermal Safety (Lit Models): The integrated toggle switch can become warm during appliance use. Allow your fire to die down and wait at least 20 minutes before turning off the light switch manually.
Aftercare & Cleaning
- Clean exclusively using a soft, lint-free cloth and warm water.
- Do not use household chemical cleaners, detergents, or abrasive scrubbing pads.
Delivery Policy:
Enjoy free UK mainland delivery on all orders. Learn more about our parcel and freight transit times on our Store Shipping Policy
Returns & Refunds:
This item is backed by a 30-day return window for unused items in original packaging. Read our full Store Refund Policy.
Support
If you have any questions about compatibility or installation, contact us:
Email: support@blueoakhome.co.uk
Phone: 0116 373 4193
